DC12V Touch Sensor Push Button Switch for Magnetic Door Locks
Détails sur le produit:
| Lieu d'origine: | CHINE |
| Nom de marque: | JUNSON |
| Certification: | CE |
| Numéro de modèle: | JS-C1 |
Conditions de paiement et expédition:
| Quantité de commande min: | 50pcs |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | emballé dans le carton |
| Délai de livraison: | 2-7 jours ouvrables après avoir reçu votre paiement |
| Conditions de paiement: | T / T, Paypal ou Western Union à l'avance |
| Capacité d'approvisionnement: | 20,000pcs par mois |
|
Détail Infomation |
|||
| Marque: | Junson | Modèle: | JS-C1 |
|---|---|---|---|
| Application: | Tout le cadre de porte étroit | Contact: | NO/NC/COM |
| Taille: | 86*53*25 mm | Tension: | DC 12V |
| Matériels: | Bouton de placage | Disponible: | Tout type de cadre de porte étroit |
Description de produit

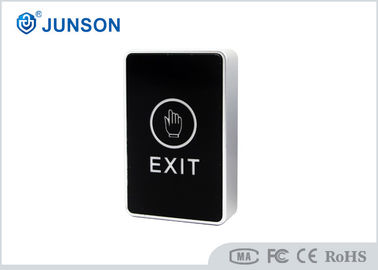

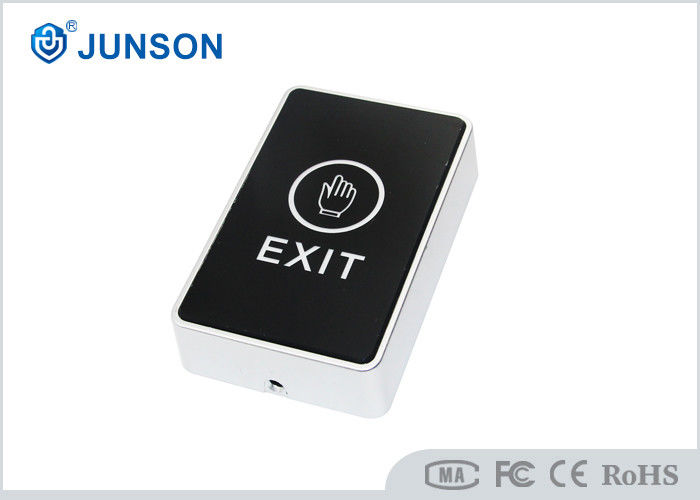

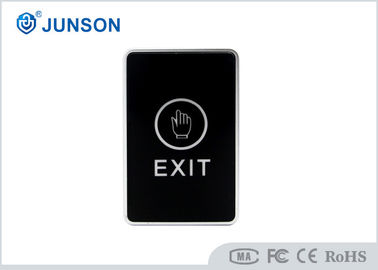

DC12V Push Touch Sensor Switch for Magnetic Door Lock Systems
Model:JS-C1
Specifications:
| Brand | JUNSON |
|
Materials |
Plasting button |
|
Dimension |
86*53*25 (mm) |
|
Thickness of materiasl |
2mm |
|
Weight |
0.15kg |
|
Finishing |
Sandblast finishing |
|
Current rating |
3A@36V DC Max |
|

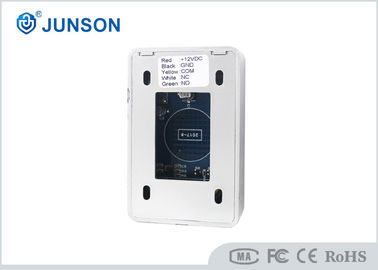

Contact interface |
NO/NC/COM |
|
Mechanical life |
500000 times |
|
Operating Temp |
-10℃ - 55℃ |
|
Suitable Humidity |
0-95% (non-condensing) |
|
Available |
All kind of narrow door frame |
|
Standard Packing |
100pcs |
|
Cartons size: |
51L * 24W * 47H (cm) |
Features:
-
Innovative design without mechanical bolts for enhanced durability.
-
Stylish aluminum panel offering a sleek and modern appearance.
-
Includes a mounting box for quick and easy installation.
-
Tested for over 500,000 cycles to ensure long-term reliability.
-
Equipped with three contact outputs, compatible with various lock types.
-
An ideal solution for access control systems seeking efficiency and style.
Product Description:
The DC12V Touch Sensor Switch is a modern and efficient solution for access control systems. Designed without mechanical components, it ensures smooth, silent, and long-lasting operation. Its elegant aluminum panel and touch-sensitive technology make it ideal for contemporary environments such as offices, residential buildings, and smart security systems. With a durable build and compatibility with various magnetic locks, this switch offers both convenience and reliability for everyday access management.
