36V DC Fire-Rated Emergency Exit Release Button with ABS Housing
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | JUNSON |
| Certification: | CE |
| Numéro de modèle: | JS-Gr01 |
Conditions de paiement et expédition:
| Quantité de commande min: | 50 pièces |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | Emballé dans un carton |
| Délai de livraison: | 2-7 jours ouvrables après réception de votre paiement |
| Conditions de paiement: | T/T,paypal ou Western Union à l'avance |
| Capacité d'approvisionnement: | 20,000pcs par mois |
|
Détail Infomation |
|||
| Marque: | JUNSON | Modèle: | JS-Gr01 |
|---|---|---|---|
| Matériels: | Logement d'ABS | Contact: | Co / nc / com |
| Taille: | 86 * 86 * 50 mm | Disponible: | Système de sécurité |
Description de produit

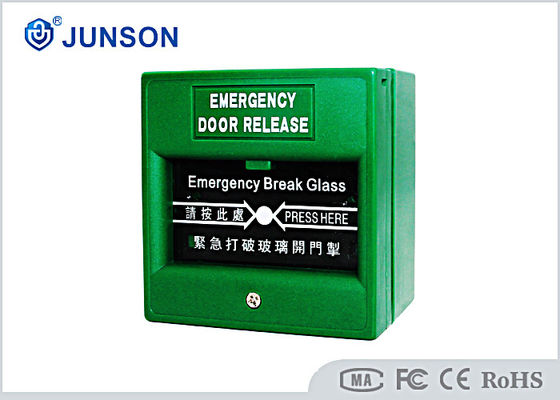

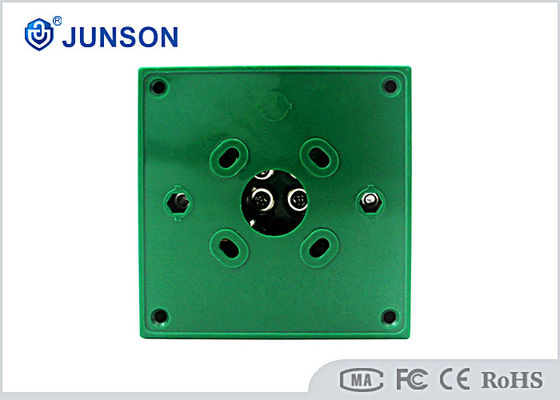

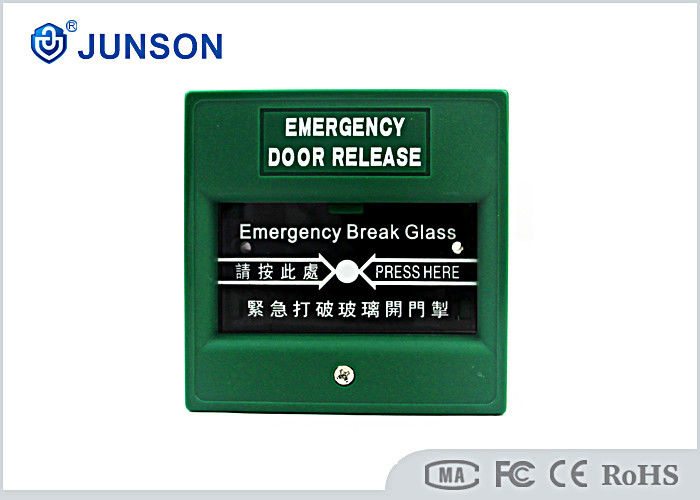

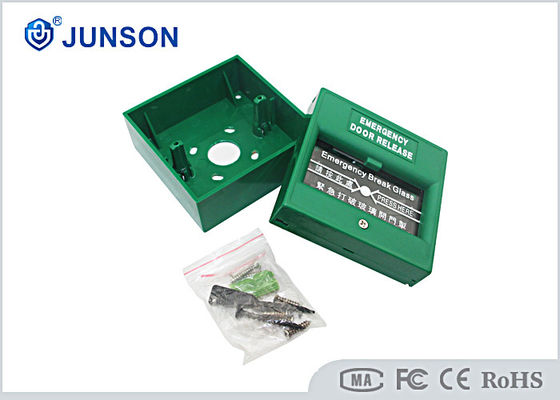

JS-GR01 Fire-Rated Emergency Exit Release Button with ABS Housing
Product Description
The JS-GR01 Emergency Exit Release Button is a reliable safety device designed for access control, fire alarm, and security systems. Constructed with a durable ABS housing and fire-resistant materials, it provides dependable emergency door release functionality in critical situations.
Featuring NO/NC/COM dry contacts and a maximum rating of 36V DC, 3A, the JS-GR01 is compatible with a wide range of access control systems, electromagnetic locks, and emergency exit applications. Its compact design, durable construction, and optional protective cover make it an ideal choice for commercial buildings, offices, schools, hospitals, and public facilities.
Key Features
- Fire-rated emergency exit release button
- Durable ABS housing construction
- Supports NO / NC / COM contact outputs
- Maximum rating: 36V DC, 3A
- Fire-resistant front panel with dull polish finish
- Optional transparent protective cover
- Available in multiple colors: Green, Yellow, Red, and White
- Easy installation with standard 86 × 86 mm dimensions
- Reliable performance for access control and security systems
- Suitable for indoor emergency exit applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JS-GR01 |
| Dimensions | 86 × 86 × 50 mm |
| Maximum Voltage | 36V DC |
| Maximum Current | 3A |
| Contact Output | NO / NC / COM |
| Housing Material | ABS |
| Front Panel Finish | Fireproof Material, Dull Polish |
| Optional Accessory | Transparent Protective Cover |
| Color Options | Green, Yellow, Red, White |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 0–95% RH |
| Application | Security & Access Control Systems |
